Peregrine APEX

The Peregrine APEX is a state of the art series of micro-gear pumps designed to meet the rigorous standards of the aerospace industry.

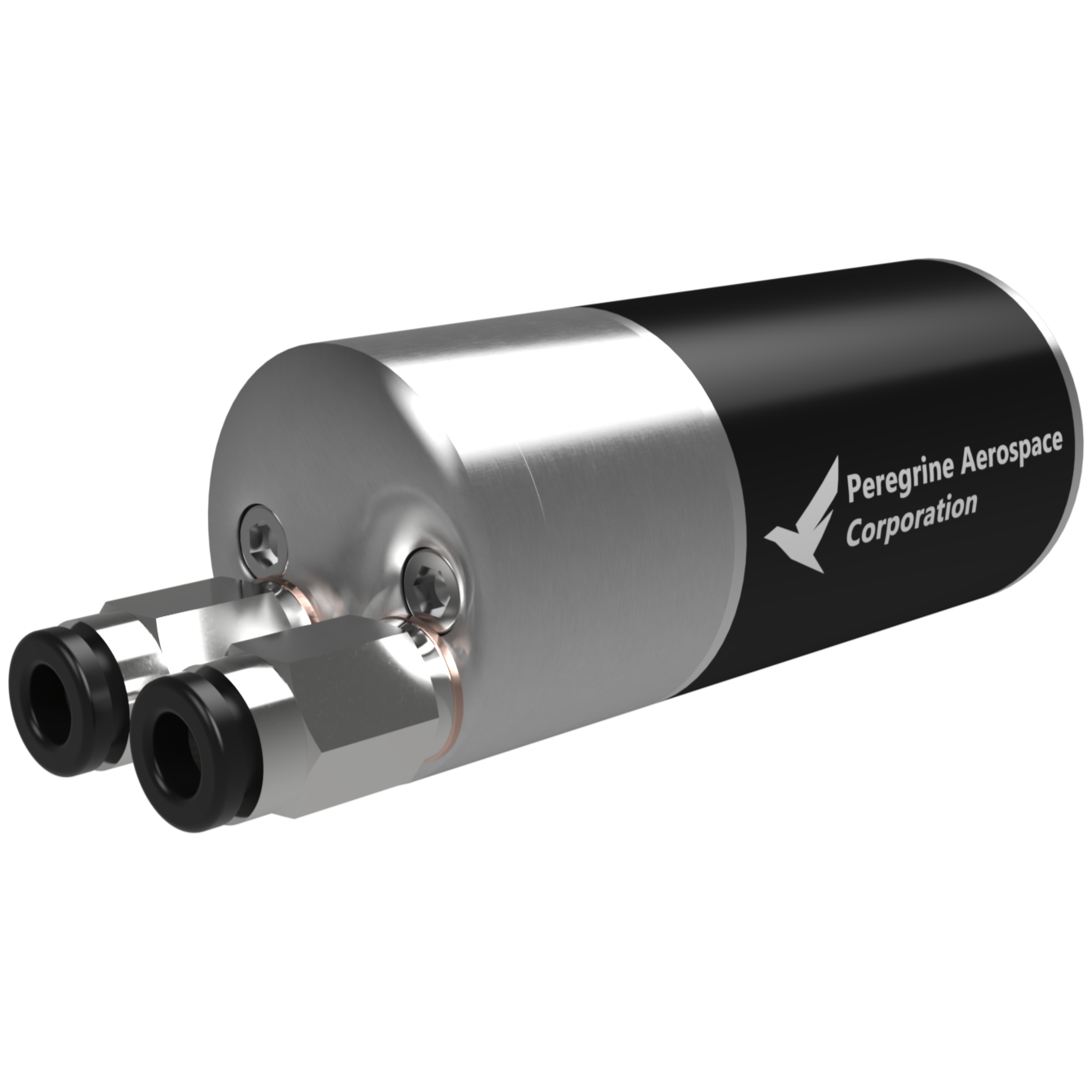

Close-up of a micro-gear pump with metal and black components, connected by two small metal fittings, mounted on a 3D printed black base.

What makes our pumps different?

  • Maximum flow rate of 1600 ml/min of a variety of fluids including heavy fuels and oils.

  • 60 gram system mass.

  • Brushed or brushless architectures available.

  • Customizable casing/gear material for various applications.

  • A scalable design that allows for a wide range of configurations in the same system package.

  • Design optimized for both additive and subtractive manufacturing techniques.

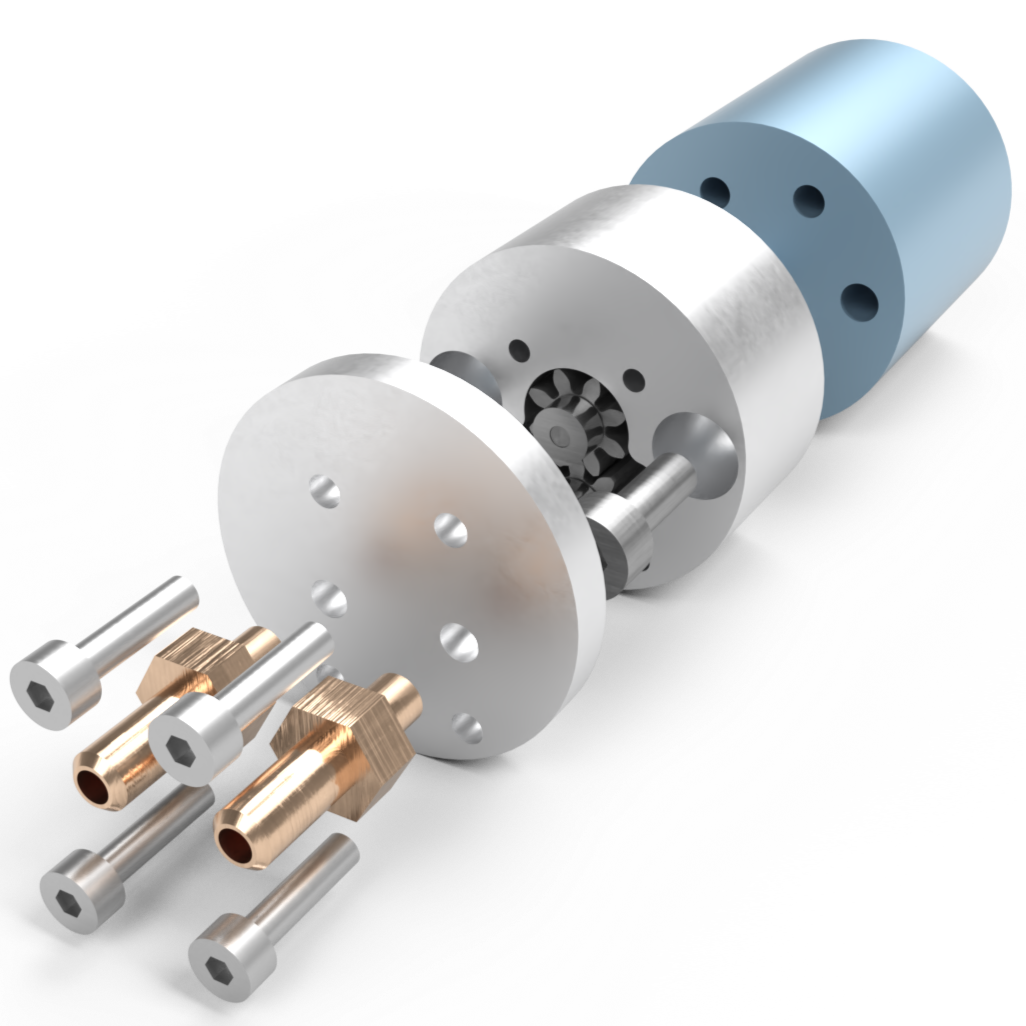

Disassembled mechanical component with metallic and composite parts, including bolts and cylindrical pieces.

  • The Peregrine APEX is an advanced external gear pump that was originally designed to deliver fuel to our hybrid electric powerplants. This type of pump operates by employing a set of precisely meshing gears to effectively transfer the working fluid throughout the pump casing.

  • The APEX pump leverages a blend of modern and traditional manufacturing techniques, enabling efficient mass production and assembly without the reliance on specialized tooling that escalates costs, particularly for lower volume component production. Our design philosophy emphasizes manufacturability and a resilient supply chain, ensuring that the APEX remains cost-effective while maintaining high standards of quality and performance.

  • Yes, the APEX can be tailored to meet diverse operating conditions. Whether you require alternative gear materials for corrosive fluids, different gasket specifications, increased head pressure, or an alternative motor configuration, our team is ready to collaborate with you to customize the pump according to your specific application requirements.
